Reciprocating piston air compressors are one of the most widely used types of air compressor in Australia, and for good reason. They’re robust, cost-effective, and well suited to a huge range of jobs where compressed air is needed in short bursts or at high pressure. From small workshops to heavy-duty construction sites, piston compressors have been powering pneumatic tools and equipment for decades.
At Air & Power, we supply, install, and service reciprocating piston air compressors for businesses across Perth and regional Western Australia. With more than 35 years of hands-on field experience, our team will help you choose the right piston compressor for your operation and keep it running reliably for years to come.
A reciprocating piston air compressor is a positive displacement machine that compresses air using a piston driven by a connecting rod and cranks back and forth inside a cylinder. On the down stroke, air is drawn into the chamber through an intake valve. On the up stroke, the valve closes and the piston compresses the gas before discharging it into a storage tank at the target pressure.
This reciprocating motion gives the compressor its name. In a typical piston compressor, each revolution of the crankshaft produces a pulse of compressed air, which is why piston units are sometimes called “recip” compressors. The compressed air is held in a pressure vessel (the receiver tank) so it’s ready to supply your tools and equipment the moment you need it.
Reciprocating piston air compressors are one of the oldest and most proven designs in the compressed air industry. The technology is simple, the parts are readily available, and the machines are built for durability.
Reciprocating compressors come in single-stage and two-stage configurations.
A single-stage compressor compresses air in one stage , from atmospheric pressure up to the final pressure, typically around 125 PSI. Single-stage units are well suited to smaller workshops, light industrial applications, and small businesses that need a cost-effective solution for everyday pneumatic tools.
A two-stage compressor compresses air in two stages . The first stage compresses air to an intermediate pressure, then the air is cooled before a second piston compresses it further to the final pressure, often 175 PSI or higher. Two-stage units are more efficient at higher pressures, run cooler under demanding conditions and are the right choice for heavy-duty industrial applications, larger workshops, and jobs requiring higher pressure output.
Many industrial grade piston compressors are belt-driven. A belt and pulley assembly connects the motor to the compressor pump, allowing the pump to run at a lower speed than the motor. This can help reduce heat, wear and noise, supporting longer service life under demanding conditions. Belt-driven compressors are commonly preferred for serious workshop and industrial use as they are well suited to heavier workloads and longer operating periods.
Direct-drive units, where the motor connects directly to the pump are often smaller, lighter, and more cost effective. They are well suited to portable, occasional or lighter-duty applications, although some commercial direct-drive models are designed for more demanding use. For sustained workshop or site use, a belt-driven unit is often the better long-term choice.
The right choice between a piston compressor and a rotary screw compressor comes down to how your operation uses compressed air.
Reciprocating piston compressors are built for intermittent use. They deliver short bursts of high-pressure air and then rest. Their duty cycle is typically 25% to 75%, meaning they need cool-down time between loads. They cost less upfront, handle high-pressure applications well, and suit operations where air demand is not required continuously.
Rotary screw compressors are built for continuous air demand. Many industrial rotary screw units can run at 100% duty cycle, delivering a steady stream of compressed air for long operating hours . They cost more initially but can provide better long-term value in high-demand industrial operations where consistent air supply, efficiency and reliability are priorities..
If your air demand is intermittent, if you need high pressure for specific tools, or if upfront budget is a major factor, a reciprocating piston air compressor is often the right fit.
Piston compressors usually cost less to purchase than rotary screw units of similar capacity. For tradies, small businesses, and workshops with moderate air demand, that lower entry price makes them a practical choice.
Reciprocating compressors can often deliver higher maximum pressure than most rotary screw units. Two-stage piston compressors commonly reach 175 to 200 PSI, making them suitable for applications such as pressure testing, tyre inflation, specialised pneumatic tools and some diesel engine air-start systems.
A well-built piston compressor is a genuinely tough machine. Cast-iron pumps, heavy-duty bearings, and simple mechanical design mean fewer complex components. With regular maintenance, an industrial piston compressor will give you many years of reliable performance.
The mechanical simplicity of piston compressors makes them straightforward to maintain and repair. Parts are widely available, diagnostics are usually uncomplicated, and our technicians can usually get a unit back up and running quickly.
When your operation needs compressed air in short bursts rather than a continuous flow, a piston compressor can be a practical and economical choice. It can build pressure in the receiver tank, shut off when demand is low, and restart when more air is required.
Reciprocating piston air compressors are used across many different applications, including:
The range of suitable uses is broad, which is why piston compressors remain a staple across so many Australian industries.
Sizing a piston compressor correctly matters. Undersize it and the compressor may run too often, overheat, and wear prematurely. Oversize it and you may pay for capacity you do not need. The key specifications to consider are:
Our team can work through these details with you, assess the tools and equipment you are running, and recommend a compressor that fits the job.
We supply piston compressors built to last, with Australian Standards compliance and proper warranty support. Cheap imported compressors often cut corners on materials, compliance, and parts availability, which leaves customers exposed to breakdowns, safety risks, and sourcing headaches down the track. A compressor is part of a critical compressed air system in most operations. It pays to start with quality.
Filters, valves, gaskets, oil, and wear parts for the brands we service are held in stock at our Belmont facility. When you need a repair done quickly, we’re not waiting weeks on shipments from overseas. .
Every installation and repair is carried out by qualified mobile technicians with deep field experience. Our focus is on keeping your compressor running reliably, not on pushing unnecessary upgrades.
We service Perth and regional Western Australia with a mobile team that comes to your site. Emergency breakdown response, scheduled servicing, and compliance inspections are all handled on location.
Pressure vessels, including air receiver tanks on piston compressors, must meet WorkSafe WA inspection and registration requirements. We carry out compliance inspections and maintain documented service records so your equipment stays safe and legal to operate.
Regular maintenance is the single biggest factor in getting long, reliable performance out of a piston compressor. Proper lubrication, clean filters, and correct belt tension make the difference between a machine that lasts 20 years and one that fails in five. Our preventative servicing covers:
For emergency breakdowns, our mobile technicians respond quickly across Perth and regional WA to get you back up and running.

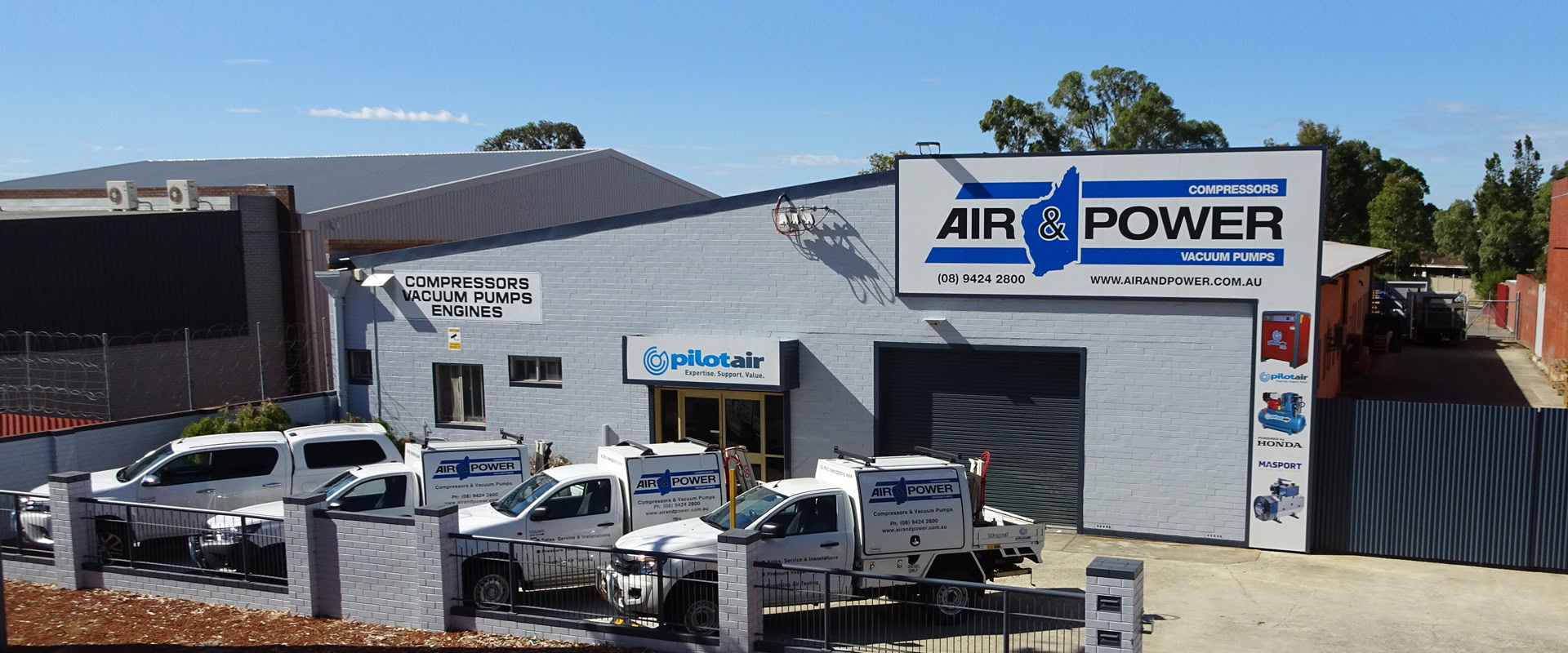

Whether you need a new reciprocating piston air compressor, a replacement for an ageing unit, parts and servicing, or advice on choosing the right machine for your operation, Air & Power can help. We’re based at 7 Fisher Street, Belmont, and we service customers across Western Australia.
Call: (08) 9424 2800
Email: enquiries@airandpower.com.au
Address: 7 Fisher Street, Belmont WA 6104
Contact our team today to discuss your compressed air requirements.
